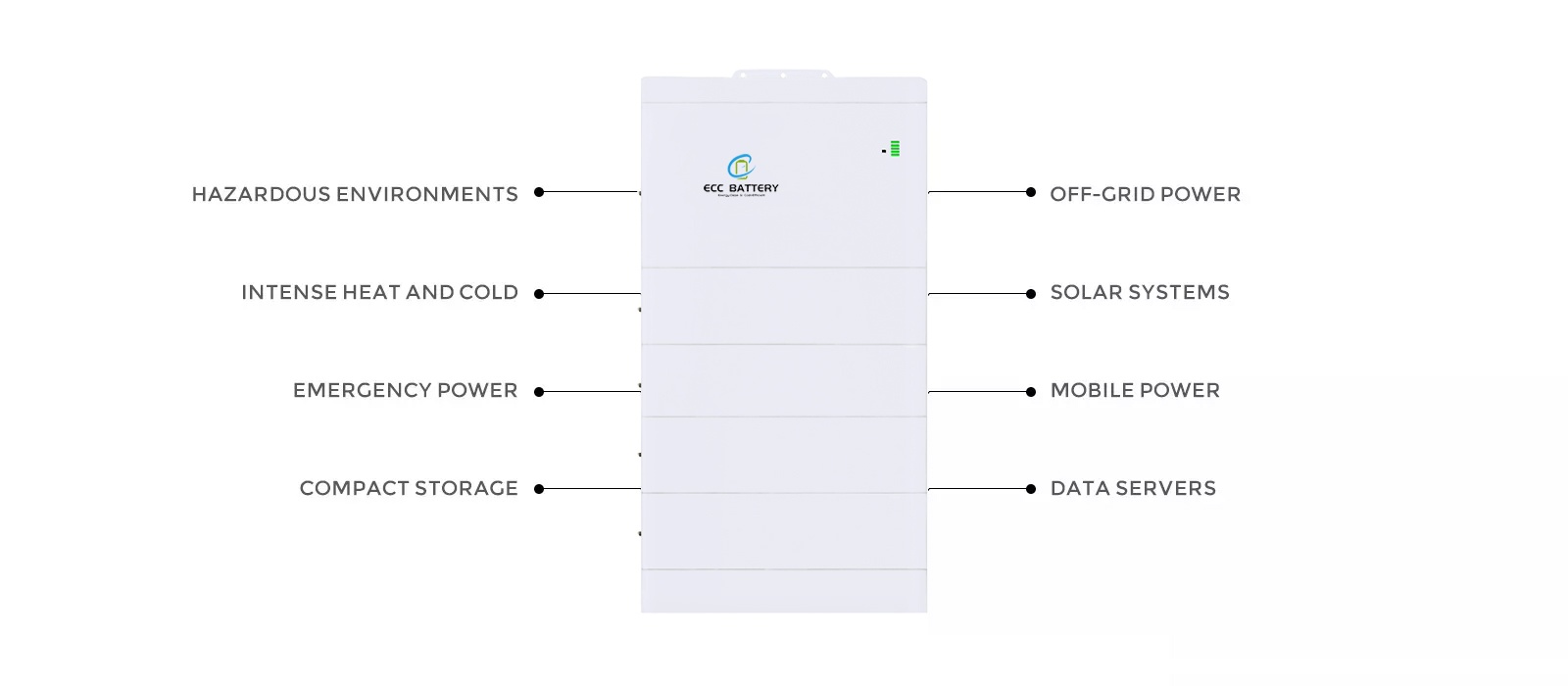

High-voltage LiFePO4 Home Energy Storage System

Produce your own energy and use it whenever you'd like, day or night.
Solar batteries reduce your reliance on the grid by storing your solar energy for use when the sun isn’t shining. You can use solar batteries to save money, reduce your carbon footprint and prepare your home for power outages.
  • Backup power
  • Outage protection
  • Power your home
  • Clean energy
  • Keep appliances running
  • Control your savings
  • Protect your home
  • Manage your energy
Availability:


Advantages of having a solar battery


Less Dependence On The Grid

First, solar batteries allow you to be less dependent on the grid. Having great energy independence also means that you have the ability to power your home entirely with clean solar energy.


Producing Clean Energy

Utilities derive the majority of their electricity from dirty fossil fuels. Installing a solar battery ensures that you will power your home entirely with renewable energy produced right on your roof!


Access To Backup Power

The utility grid can be unreliable. Solar batteries can be used as a backup power source when the grid goes down. It is especially useful to have a backup battery bank in places like California, where grid outages are common during wildfire season.


Big Savings On Your Electric Bill

Solar batteries also have the potential to save you money on your electric bill. This is especially true if your utility uses a time-of-use rate structure. This means that your utility will charge different rates for electricity depending on the time of day. Moreover, solar batteries can also offer bill savings if your utility does not offer full retail net metering.

High-voltage LiFePO4 Home Energy Storage System


SPECIFICATIONS


  • High-voltage LiFePO4 battery module,Single module is 102.4V 50Ah.

  • 2 to 5 layers recommended.

  • Inverter you need choose 380V 3phase input and output,common is 15Kva/30Kva inverter.

  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power.

  • Capable of High-Powered Emergency-Backup and Off-Grid Function.

  • Self-Consumption Optimization for Residential and Commercial Applications.

  • Modular Design Simplifies Transport and Installation.


Technical Specification

Model

Number of layers

Energy

Operating Voltage Range

Dimension (L*W*H)

Weight

102.4V 50Ah

2 layers

5.12 KWh

86.4V ~ 113.6V

600 * 210 * 660

72.3

153.6V 50Ah

3 layers

7.68 KWh

129.6V ~ 170.4V

600 * 210 * 820

118.1

204.8V 50Ah

4 layers

10.24 KWh

172.8V ~ 227.2V

600 * 210 * 980

163.9

256V 50Ah

5 layers

12.8 KWh

216V ~ 284V

600 * 210 * 1140

209.7

307.2V 50Ah

6 layers

15.36 KWh

259.2V ~ 340.8V

600 * 210 * 1300

255.5

358.4V 50Ah

7 layers

17.92 KWh

302.4V ~ 397.6V

600 * 210 * 1460

301.3

409.6V 50Ah

8 layers

20.48 KWh

345.6 ~ 454.4V

600 * 210 * 1620

347.1

460.8V 50Ah

9 layers

24.04 KWh

388.8V ~ 511.2V

600 * 210 * 1780

392.9

512V 50Ah

10 layers

25.6 KWh

432V ~ 568V

600 * 210 * 1940

438.7


Recommend charge current

10~25A

Max continue charge current

50A

Max continue discharge current

50A

Peak current

100A

Display

The information of Battery, such as SOC, battery voltage and so on

Communication

Support RS485 / CAN

Operating temperature

-20℃~55℃

Environment

Indoor

Relative humidity

5%~95%

Cooling

Natural convection and fan cooling

Cell technology

Lithium-iron phosphate (LiFePO4)

Life cycle

3500 times @ 80%DOD

Single module Technical Specification

Dimension (L * W * H)

600 * 210 * 160

Battery module weight

26.5kg


Performance Characteristic (1)
Performance Characteristic (2)


Performance Characteristic (3)
Performance Characteristic (4)



Certain applications benefit greatly from custom battery solutions. Watercraft, aircraft and other vehicles, for instance, have weight and balance specifications to meet, and customizing your battery helps meet those requirements. Our custom lithium battery packs offer turnkey solutions that combine lithium battery cells, a battery management system, mechanicals, communications and safety certifications.

  • Customized logo(Min. Order 100 Pieces)

  • Customized packaging(Min. Order 100 Pieces)


Certification


APPLICATION SCENARIOS


As local storage technologies for household use, they are smaller relatives of battery-based grid storage and support the concept of distributed generation. When combined with on-site generation, they can virtually eliminate power outages in off-grid lifestyles.

Lithium-ion batteries power a variety of devices—power tools, laptops, tablets, cell phones, and electric vehicles. They have some distinct advantages over wet cell lead-acid batteries, such as those you find in cars. Rapidly falling prices and developments in lithium-ion batteries and related technologies are changing all that. The new generation of solar storage is cheaper, more cost-effective, leaner and better looking.

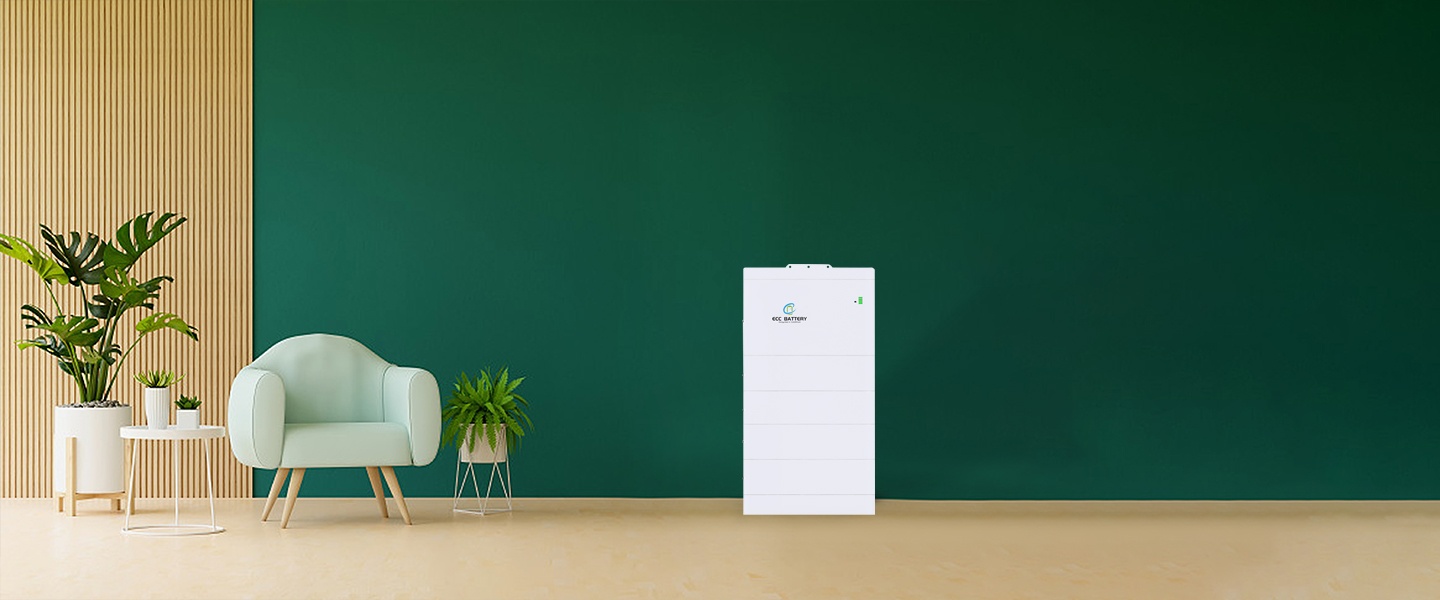

APPLICATION SCENARIOS (1)

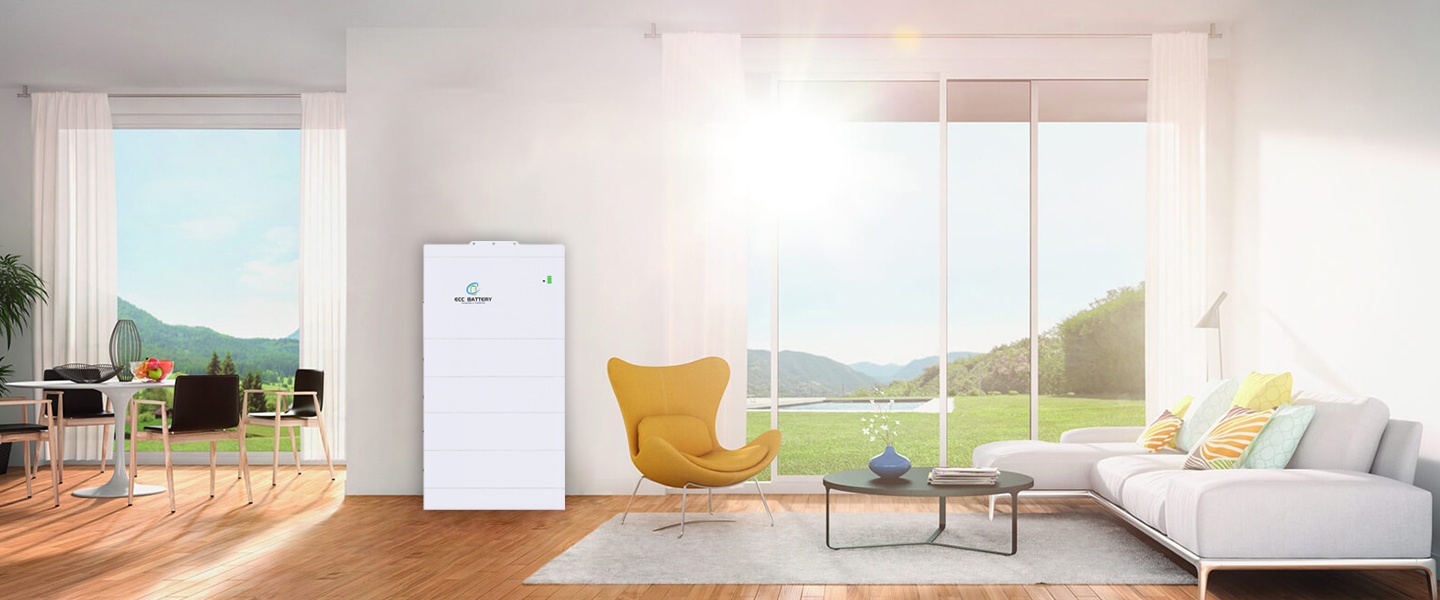

APPLICATION SCENARIOS (2)
