Advantages of home battery systems
Reduce emissions - Reduce pollution and demand from coal and gas dependent power grids
Be blackout safe - Provides backup power during a blackout or emergency
Reduce cost - Save money by using less energy from the grid
Become energy independent - Store your excess solar energy to reduce your grid usage
Reduce peak demand - Supporting the grid during peak times and provide grid stability services
SPECIFICATIONS
ELECTRICAL SPECIFICATION:
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah |
Capacity @20A | 5HR |
Energy | 5120Wh |
Resistance | ≤50mΩ |
Efficiency | 99% |
Self Discharge | <3% per month |
DISCHARGE SPECIFICATIONS:
Max. Cont. Discharge | 100A |
Peak Discharge Current | 200A |
Recommend Cut-off voltage | 42V |
CHARGE SPECIFICATION:
Recommended Charge Current | 20-40A |
Max. Charge Current | 100A |
Recommended Charge Voltage | 58.4V |
Charge Current (-20 to -10 ºC) | ≤0.05 C |
MECHANICAL SPECIFICATIONS:
Dimensions(L*W*H) | 550 * 350 * 248mm (Can also be customised) |
Weight | 49KG |
Terminal Type | M8 screw |
Case Material | Metal |
Enclosure Protection | IP42 |
TEMPERATURE SPECIFICATION:
Discharge Temperature | -20ºC to 60 ºC |
CHARGE SPECIFICATION:
Charge Temperature | 0 ºC to 55 ºC |
Storage Temperature | -20ºC to 40 ºC |
BMS High Temperature | 75 ºC |
Reconnect Temperature | 50 ºC |
Main Application:
Solar Storage Battery, Off Grid System, Wind Storage System, Ess System
Remark:
1> These lifepo4 batteries current can be customized.
2> This lithium battery dimension can be customized.
3> LiFePO4 battery is widely used as replacement battery for lead acid battery, AGM battery.
Other Function Optional:
1> Bluetooth Function
2> Communication Function: RS485, RS232, Canbus
3> Self Heat Function
Certain applications benefit greatly from custom battery solutions. Watercraft, aircraft and other vehicles, for instance, have weight and balance specifications to meet, and customizing your battery helps meet those requirements. Our custom lithium battery packs offer turnkey solutions that combine lithium battery cells, a battery management system, mechanicals, communications and safety certifications.
Customized logo(Min. Order 100 Pieces)
Customized packaging(Min. Order 100 Pieces)

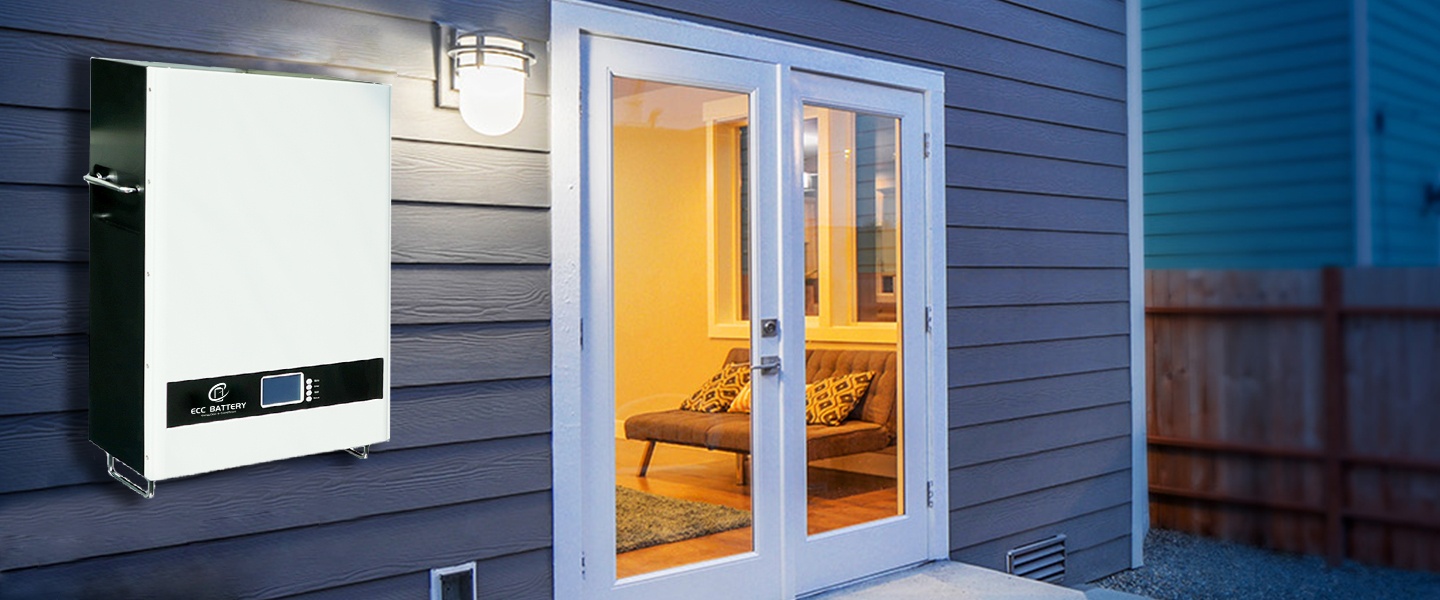

APPLICATION SCENARIOS
As local storage technologies for household use, they are smaller relatives of battery-based grid storage and support the concept of distributed generation. When combined with on-site generation, they can virtually eliminate power outages in off-grid lifestyles.
Lithium-ion batteries power a variety of devices—power tools, laptops, tablets, cell phones, and electric vehicles. They have some distinct advantages over wet cell lead-acid batteries, such as those you find in cars. Rapidly falling prices and developments in lithium-ion batteries and related technologies are changing all that. The new generation of solar storage is cheaper, more cost-effective, leaner and better looking.
Advantages of home battery systems
Reduce emissions - Reduce pollution and demand from coal and gas dependent power grids
Be blackout safe - Provides backup power during a blackout or emergency
Reduce cost - Save money by using less energy from the grid
Become energy independent - Store your excess solar energy to reduce your grid usage
Reduce peak demand - Supporting the grid during peak times and provide grid stability services
SPECIFICATIONS
ELECTRICAL SPECIFICATION:
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah |
Capacity @20A | 5HR |
Energy | 5120Wh |
Resistance | ≤50mΩ |
Efficiency | 99% |
Self Discharge | <3% per month |
DISCHARGE SPECIFICATIONS:
Max. Cont. Discharge | 100A |
Peak Discharge Current | 200A |
Recommend Cut-off voltage | 42V |
CHARGE SPECIFICATION:
Recommended Charge Current | 20-40A |
Max. Charge Current | 100A |
Recommended Charge Voltage | 58.4V |
Charge Current (-20 to -10 ºC) | ≤0.05 C |
MECHANICAL SPECIFICATIONS:
Dimensions(L*W*H) | 550 * 350 * 248mm (Can also be customised) |
Weight | 49KG |
Terminal Type | M8 screw |
Case Material | Metal |
Enclosure Protection | IP42 |
TEMPERATURE SPECIFICATION:
Discharge Temperature | -20ºC to 60 ºC |
CHARGE SPECIFICATION:
Charge Temperature | 0 ºC to 55 ºC |
Storage Temperature | -20ºC to 40 ºC |
BMS High Temperature | 75 ºC |
Reconnect Temperature | 50 ºC |
Main Application:
Solar Storage Battery, Off Grid System, Wind Storage System, Ess System
Remark:
1> These lifepo4 batteries current can be customized.
2> This lithium battery dimension can be customized.
3> LiFePO4 battery is widely used as replacement battery for lead acid battery, AGM battery.
Other Function Optional:
1> Bluetooth Function
2> Communication Function: RS485, RS232, Canbus
3> Self Heat Function
Certain applications benefit greatly from custom battery solutions. Watercraft, aircraft and other vehicles, for instance, have weight and balance specifications to meet, and customizing your battery helps meet those requirements. Our custom lithium battery packs offer turnkey solutions that combine lithium battery cells, a battery management system, mechanicals, communications and safety certifications.
Customized logo(Min. Order 100 Pieces)
Customized packaging(Min. Order 100 Pieces)
APPLICATION SCENARIOS
As local storage technologies for household use, they are smaller relatives of battery-based grid storage and support the concept of distributed generation. When combined with on-site generation, they can virtually eliminate power outages in off-grid lifestyles.
Lithium-ion batteries power a variety of devices—power tools, laptops, tablets, cell phones, and electric vehicles. They have some distinct advantages over wet cell lead-acid batteries, such as those you find in cars. Rapidly falling prices and developments in lithium-ion batteries and related technologies are changing all that. The new generation of solar storage is cheaper, more cost-effective, leaner and better looking.
